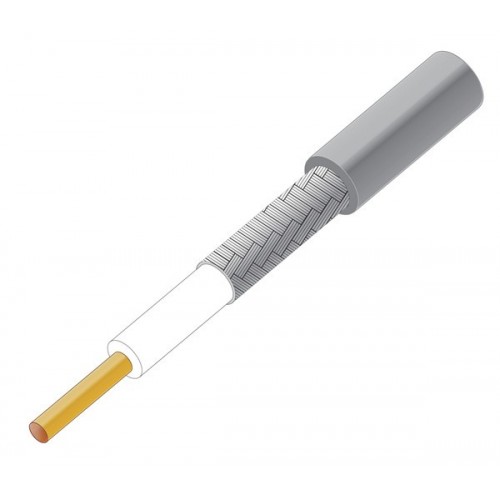

中文 1.13mm 微细同轴电缆
- 查看全尺寸
| 产品编号 | 1.13mm 电缆 |
|
阻抗 |
50 欧姆 |
|
频率 |
0~6 GHz |
产品分类
- (Ⅰ)射频同轴连接器
- (Ⅱ)系列间转接器
- (Ⅲ)射频线材组件
- (Ⅴ)射频同轴线材
- (Ⅵ)射频同轴负载
- (Ⅶ)射频同轴衰减器
- (Ⅷ) PARTS
- (Ⅸ)产品特性分类
友情链接
主页 > 1.13mm 微细同轴电缆
|
|||
|
Item |
Material | Diamenter (mm) | |
| 1. Inner Conductor | Silver Played Copper Clad Steel | 7x0.08 | |
| 2. Dielectric | PTFE | 0.68 | |
| 3. Outer Conductor |
Silver Plated Copper Braid |
0.88 | |
| 4. Jacket |
FEP |
1.13 | |
| Electrical Characteristics | |||
| Capacitance (Pf/M) | 95.6 | ||
| Impedance (Ohm) | 50 | ||
| Velocity(%) | 70 | ||
| Bending Radius (mm) | 4 | ||
| Max. Oper. Voltage (VMS) | 1000 | ||
| Max. Oper. Frequency (MHz) | 6000 | ||
| Operating Temp. (℃) | -55 to 200 | ||
| Attenuation (Typical) | |||
| Frequency (MHz) | Attenuation (≯dB/m/Ft) | ||
| 1000 | 2.8 / 0.86 | ||
| 3000 | 3.5 / 1.1 | ||
| 5000 | 5.05 / 1.54 | ||
|
6000 |
5.4 / 1.65 |
||
- 描述： 1.13mm 微细同轴电缆
- 产品编号: MIC1.13
