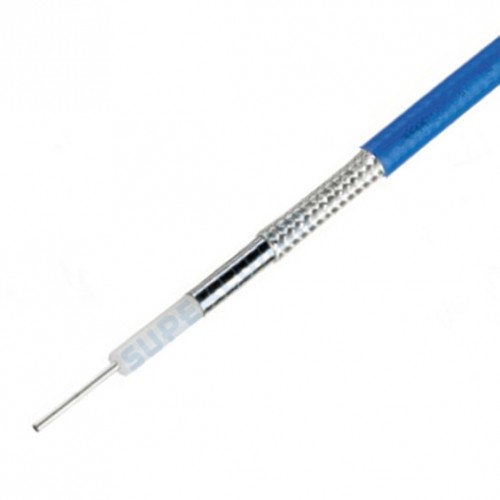

Tflex-405, Multiflex 86, Multibend 405. RG405 Cable flexible semi-rigid coaxial cable,Flexible semi-rigid

Zhuhai Superconn Technology Co., Ltd.

Email: sales@super-conn.com
Tel: 86 0756-8598027

Fax:86 0756-8598027
Sky:sales@super-conn.com QQ:3092872513
Mobile: 13169893799

Add: One of No. 5, zaobei xipian Industrial Zone, Xiangzhou District, Zhuhai, Guangdong Province. CN

Tflex-405, Multiflex 86, Multibend 405. RG405 Cable flexible semi-rigid coaxial cable,Stationary phase cable

QUANTITY	PRICE
1-50	$5.8
50+	Email

*Construction Spectification*
*Inspection Item*		*Standard*
1、Inner Conductor	Composition	1/0.51mm
	Material	Silver plated copper
	Diameter	Φ 0.51±0.01mm
2、Dielectric	Diameter	Φ 1.64±0.03mm
2、Dielectric	Material	PTEF
3、Outer Conductor	Diameter	Φ 1.80±0.05 mm
3、Outer Conductor	Material	Silver Plated Copper Foil
4、Outer sheild	Diameter	Φ 2.17±0.05 mm
4、Outer sheild	Material	Silver plated copper shield
5、Jack Conductor	PFA(BULE)	Φ 2.8±0.05 mm
Electrical data
Items		Data
Frequency range		Up to 18 GHz
Impedance(ohm)		50± 2 OHM
Capacitance		98
Velocity		70
Time delay		4.7
Max. operating Voltage		1.5
Mechanical data
Items		Data
Min. bending radius static		10.0mm
Operating temp		-65～125
RoHS		ok
*Attenuation and Power*
*Frequency (MHz)*	*Attenuation (dB/M)*	*Power(Watts CW)*
500	0.44	338
1000	0.66	219
2000	0.97	142
3000	1.23	110
5000	1.64	80
6000	1.82	71
8000	2.14	60
10000	2.43	52
15000	3.06	40
18000	3.39	36

MODEL NO: SP-405-WX
TITLE: Tflex-405, Multiflex 86, Multibend 405. RG405 Cable flexible semi-rigid coaxial cable,Stationary phase cable
